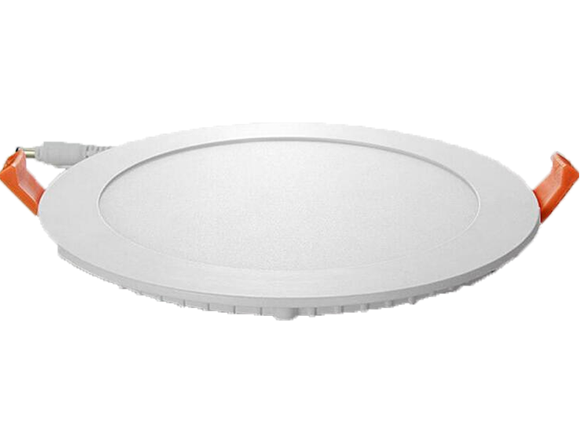

LT-DL001

Specification:

Model

LT-DL001-6W

LT-DL001-9W

LT-DL001-12W

LT-DL001-15W

LT-DL001-18W

LT-DL001-24W

Input Voltage

AC85-265V

PF

0.9/0.5

Power Consumption

6W

9W

12W

15W

18W

24W

Size

D120x13mm

D146x13mm

D172x13mm

D190x13mm

D225x13mm

D300x13mm

Hole Size

105mm

136mm

160mm

180mm

210mm

280mm

Beam Angle

120°

Color Temperature

3000-6500K

CRI

>80

Lumen

75-80lm/w

Cover

Frosted/Clear

Rating

IP44

Expected Life

50.000hrs

Material

Aluminum Alloy

Cover

White/Sliver/Gray



Feature:

1.  Die-casted aluminum alloy housing


2.  Ultra-slim,thickness: 13mm


3.  Opal diffuser make light beam uniform and low glare


4.  Led downlight UGR<19


5.  TRIAC dimmable, dimmable range 1%~100%


6.  IES file available for you

  •

    Efficient heat dissipation

    Innovative copper heat pipe + Patent zipped-fins, excellent heat dissipation.

  •

    Bracket Angle 216 °

    216°adjustable , installation angle can be adjusted freely.

  •

    Light weight

    High thermal conductivity aluminum material, more delicate, more light.

  •

    Protection rate:IP67

    To prevent dust and water invasion.

  •

    Easy to assemble

    With easy screw lock design.

  •

    Reflective rate 92%

    With higher lumen efficacy, energy saving and better illumination effect.

  •

    Professional design

    Fashion and elegant outlook, professional cooling system design, with multiple patent.

  •

    Coopper heatpipe

    Rapid cooling, extend the life of the light source.

  •

    Efficient SMD LED

    Energy-efficient SMD LED > 120-160lm/w.

  •

    Optional viewing angle

    With various optical lens at different viewing angle.

  •

    MW drive

    High efficient constant current driver by famous MeanWell company.

  •

    Philips SMD LED

    High efficient SMD LED by famous Philips brand.

  •

    IP65: Protection rate IP65

    To prevent dust and water invasion.

  •

    IP44: Protection rate IP44

    To prevent dust and particle invasion.

Application:

Widely used in hotel, house, office, parking lot, exhibition, club and other places need indoor lighting.
